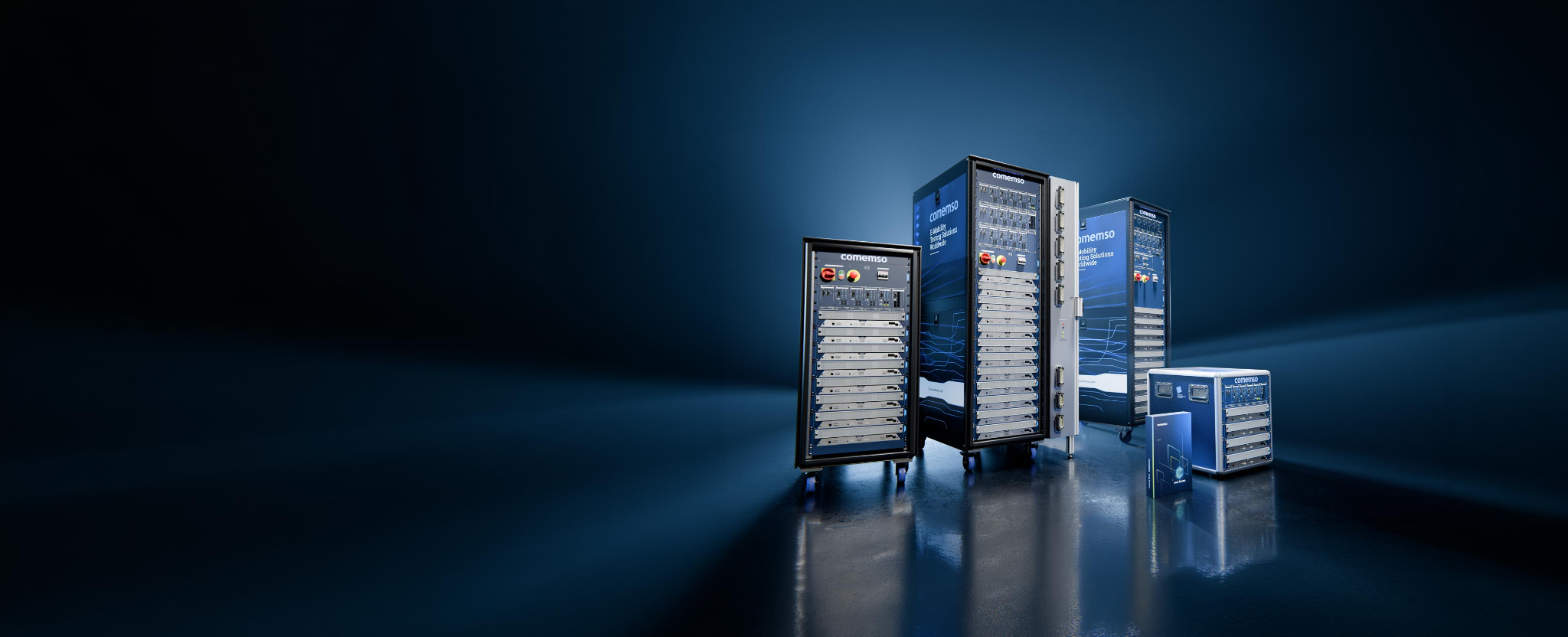

comemso Battery Cell Simulator product family from compact bench systems to full-height racks

BMS testing and battery cell simulation

BMS tester & Battery Cell Simulator

Check how your battery management system (BMS) measures cell voltages and responds to faults. The comemso Battery Cell Simulator supplies controlled cell voltages and sensor signals for repeatable tests of normal conditions, limits and defined faults.

12 to 300 cellsScale the channel count to the BMS under test
0.1 to 8 V per cellSet every simulated cell independently
Up to 1,500 VBuild high-voltage series-connected systems
Open integrationCAN, Ethernet and EtherCAT for automation and HiL

Battery Cell Simulation at a glance

Device under test

A real BMS or cell-monitoring unit. The Battery Cell Simulator reproduces individual cell voltages and selected sensor signals at its inputs.

Test depth

Cell monitoring, active/passive balancing and defined cell faults. Select channel count, voltage and source/sink current to match the BMS and its operating conditions.

Required equipment

An operating PC or HiL connection, DUT cabling and an agreed safety concept. Plan the DUT supply and any additional power equipment as part of the test bench.

Software and interfaces

comframe for setup and manual tests; CAN, Ethernet or EtherCAT according to configuration. Match automation and battery models to the test environment.

Options and boundaries

NTC/PTC, current-sensor and insulation simulation, plus safety equipment, depend on configuration. 5, 12, 24 and 38 HE identify enclosure sizes, not fixed channel counts.

Results

Review cell voltages, currents and diagnostic status alongside the BMS response recorded by the test setup. Define reporting and automatic verdicts in the test automation.

Configure the Battery Cell Simulator for your BMS test

Choose cell channels, operating points, interfaces and fault options for your BMS test. Select the modules first, then the enclosure size that accommodates them.

Text updated:

Specify cell and sensor channels, balancing currents, fault cases and the available test-bench interface.

Discuss your Battery Cell Simulator configuration

Documented project · February 2026

A compact 24-cell test bench for hybrid-BMS development

This documented OEM project combines a compact Battery Cell Simulator with 24 cell channels, NTC/PTC temperature simulation and a Fault Simulation Unit. See how the components work together in a hybrid-BMS test bench.

Compact 24-cell Battery Cell Simulator configuration used for hybrid BMS development
System of the Month, February 2026. A project-specific hybrid-BMS configuration with 24 cell channels, NTC/PTC simulation and Fault Simulation Unit.

1 · Test task

Provide repeatable cell and sensor conditions for a real hybrid BMS and reproduce defined electrical faults when comparing software versions or investigating BMS reactions.

2 · comemso system in this project

24 cell channels · NTC/PTC temperature simulation · Fault Simulation Unit. The simulator applies the configured cell states, sensor values and supported electrical faults through the selected interfaces.

3 · Also required at the test bench

The real BMS or cell-monitoring unit, DUT power supply, cabling, an operating PC or HiL connection and the agreed safety concept. Additional pack-level power equipment is planned separately when the test requires it.

4 · Evaluate the BMS response

Compare the applied conditions with the BMS response recorded by the test setup. Use the expected response and acceptance criteria defined for that project to evaluate the result.

Project configuration: The 24-channel Battery Cell Simulator tests BMS behaviour with defined cell and sensor signals. Choose the channel count and functions for your own setup. The test-bench components are listed above; cell-level and pack-level simulation are explained in the FAQ.

See the documented hybrid-BMS project →

From the battery model to electrical signals at the BMS connector

Set the cell conditions. Measure the BMS response.

A test sequence or battery model sets the cell and sensor states reproduced at the real BMS connector. Measure the controller’s timing, diagnostics and protective response.

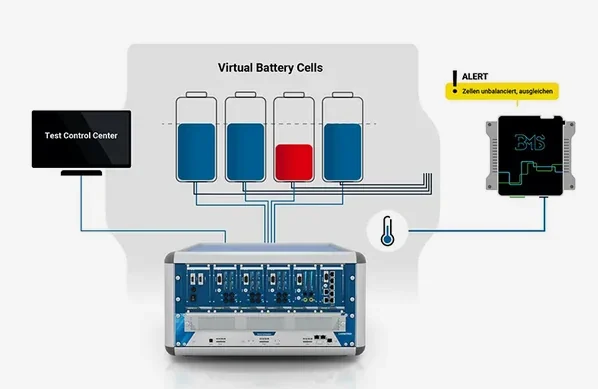

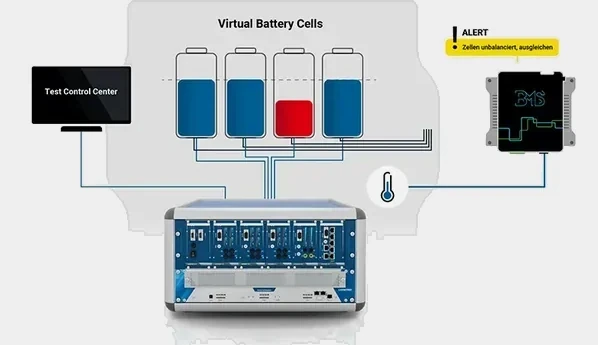

Controlled virtual cell and sensor signals connect the Battery Cell Simulator to the real BMS
The Battery Cell Simulator supplies controlled cell and sensor signals to the real BMS. Illustration of the test principle.
  1. 1
    Define

    Set SoC, SoH, temperature, load and fault state.

  2. 2
    Reproduce

    Translate the state into cell voltages, source or sink current and sensors.

  3. 3
    Verify

    Measure the BMS decision, timing, protection and recovery.

Core product capabilities

BMS tester: cell voltages, sensor signals and fault insertion

Cell voltage simulation

Set every virtual cell independently from 0.1 to 8 V. Create nominal packs, precise threshold ramps and controlled imbalance without waiting for real cells to charge or discharge.

Active and passive balancing

Use source and sink variants to reproduce current flow in both balancing directions. Select the current capability according to the BMS topology and cell-voltage range.

Review precision under load

Integrated fault insertion

Create wire breaks or open circuits, shorts across simulated-cell channels and polarity reversal within the cell-simulation electronics. The applied fault remains tied to the controlled channel.

See the fault scope

NTC and PTC simulation

Replace real thermistors with galvanically isolated temperature-sensor emulation and add defined sensor short circuits or wire breaks.

Leakage and coulomb measurement

Measure quiescent, leakage and balancing currents at cell level. Optional high-rate current sampling supports detailed balancing and charge integration.

Battery models and HiL

Run static sequences, integrated models or dynamic MATLAB and Simulink models. Connect the Battery Cell Simulator to a real-time PC and the wider test bench through documented interfaces.

Explore battery cell simulation

Cell voltage and BMS response during balancing

Cell-voltage accuracy during BMS balancing

Stable cell voltage under source and sink current makes threshold, balancing and state-estimation tests repeatable. Assess voltage accuracy under the load conditions of your BMS.

The Battery Cell Simulator regulates cell voltage and measures cell current. Compare the applied state with the BMS response during balancing.

Exact values depend on the selected module, voltage range and system configuration. The released system specification and quotation remain authoritative.

±0.5 mV standard cell-voltage accuracy
Down to ±300 µV in selected configurations
Up to 6.0 A source and sink capability
100 µs cell-current sampling for precise balancing validation (for Coulomb counting)

Controlled fault insertion

Inject faults inside the simulated cell channel.

Assess the BMS response to controlled, repeatable channel faults from detection through protection and recovery.

Open circuit and wire break

Open-circuit fault in a simulated battery cell connection

Verify interrupted measurement lines, connector faults and diagnostic response.

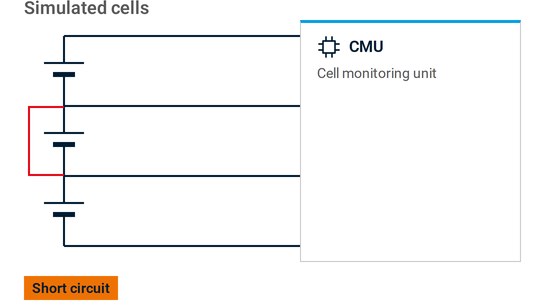

Simulated-cell channel short

Controlled short across a simulated-cell channel

Apply a controlled short to the simulated-cell channel and assess the BMS diagnosis, protective action and recovery.

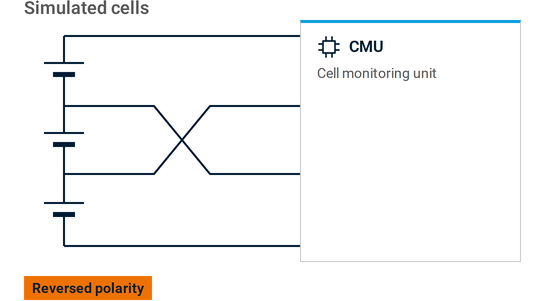

Polarity reversal

Polarity-reversal fault in a simulated battery cell connection

Validate handling of incorrect wiring, reversed connections and assembly errors.

Extended system faults

Extend testing with NTC/PTC faults, insulation-resistance simulation, current-sensor emulation and project-specific switching functions.

Choose your enclosure

Battery Cell Simulator enclosure options

Match the enclosure to your cell channels, electronics, sensor and fault options, isolation, automation and DUT interface. The installed modules determine the channel count and functions.

Compact format

Battery Cell Simulator Flex 5 HE

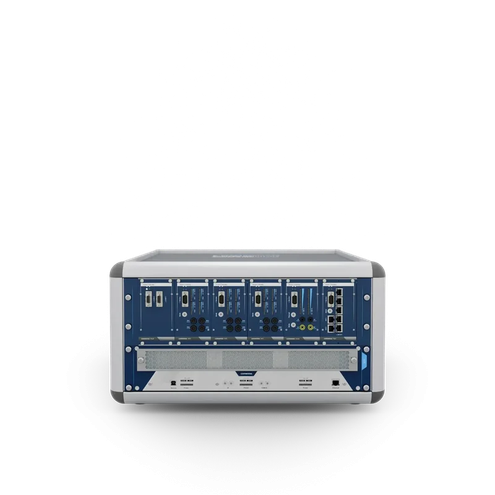

Battery Cell Simulator Flex 5 HE front view

The most compact Battery Cell Simulator Flex enclosure for table-top and focused cell-level configurations.

Rack format

Battery Cell Simulator Flex 12 HE

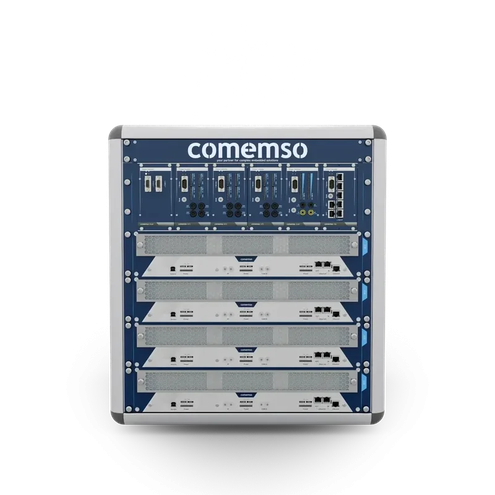

Battery Cell Simulator Flex 12 HE front view

A compact rack enclosure for modular development systems and expanded functional scope.

Mid-size rack

Battery Cell Simulator Flex 24 HE

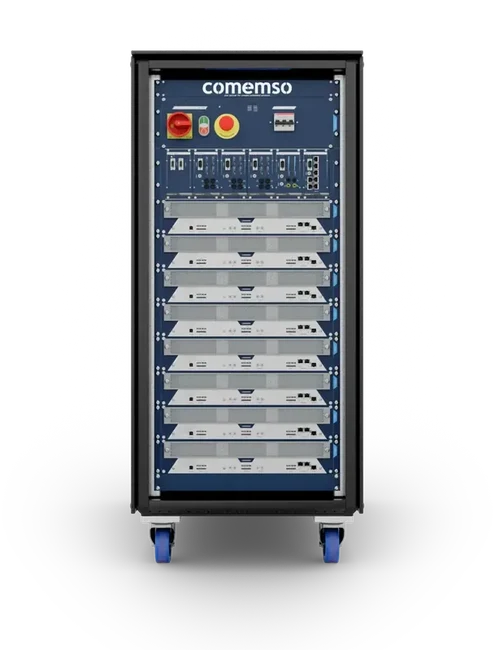

Current Battery Cell Simulator Flex 24 HE front view

A mobile mid-size rack for greater channel count and integrated BMS test functions.

Full-size rack

Battery Cell Simulator Flex 38 HE

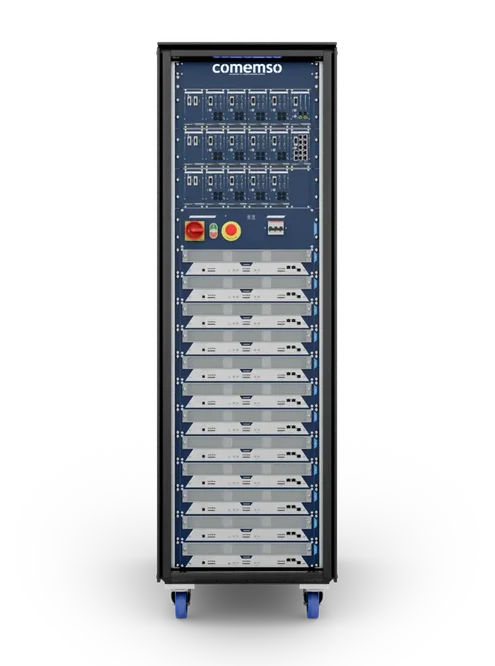

Current Battery Cell Simulator Flex 38 HE front view

The full-size platform for high-voltage, high-channel-count and complete BMS HiL configurations.

Modular system design

Cell channels and expansion to BMS HiL

12 to 36 cells

Compact bench system

For AFE (analogue measurement front end), CMC (cell management controller) and BMS development, algorithm work, start-ups and research laboratories.

  • Portable format
  • Cell and optional sensor simulation
  • Expandable architecture
24 to 60 cells

Modular development system

Develop BMS hardware and software with a modular system for balancing and fault tests.

  • Source and sink options
  • Fault Simulation Unit
  • Break-out and safety concepts
Up to 300 cells

High-voltage and EOL system

Multi-rack systems up to 1,500 V for complete packs, continuous validation and production testing.

  • Automation for long-duration operation
  • Climate chamber and multiplexer options
  • Customer-specific interfaces

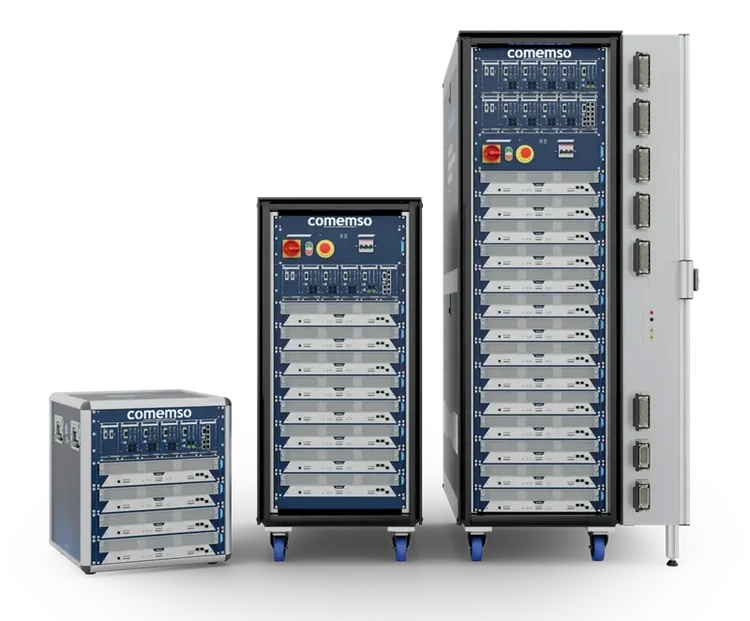

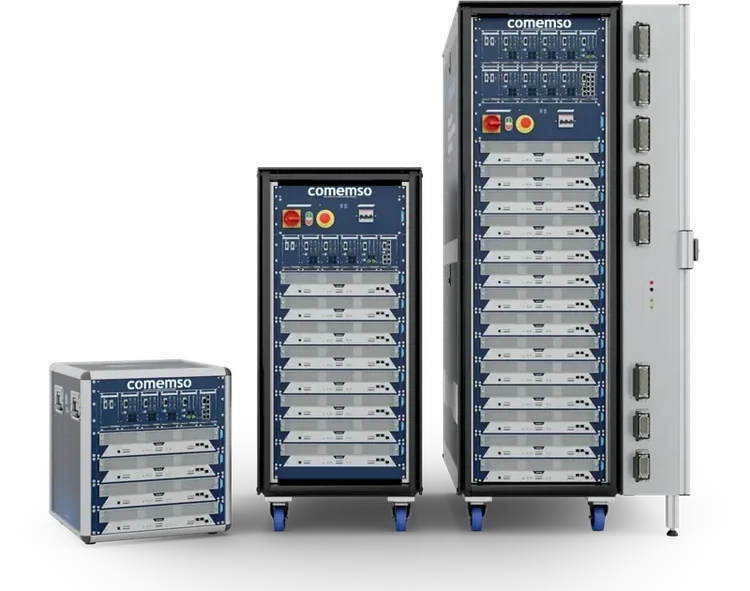

Current Battery Cell Simulator Flex enclosure family from compact system to full-size rack
Current Battery Cell Simulator Flex enclosure family. Installed cell count, functions, interfaces and safety equipment remain configuration-specific.

Complete test-bench options

Battery cell simulation and cell-current measurement
NTC and PTC temperature-sensor simulation
Integrated and system-level fault insertion
Shunt, current-sensor and insulation simulation
Switch Box, safety chain and emergency stop
Automation software, real-time PC and battery models

BMS HiL safety integration

The DUT fixture and the simulated cells share one enable chain.

Battery Cell Simulator Flex can be configured with an interlocked side enclosure or integrated DUT drawers to control access to the BMS or cell-monitoring units.

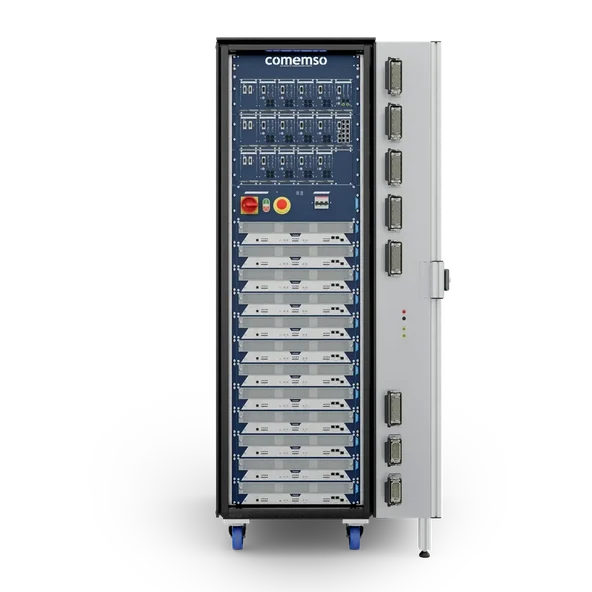

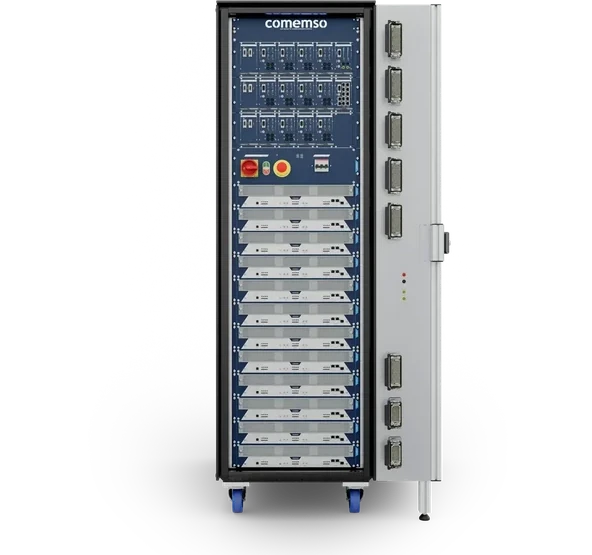

Configuration illustration showing a Battery Cell Simulator Flex rack and its open side enclosure with threaded mounting plate
Configuration illustration: rack-based Battery Cell Simulator Flex with project-specific side enclosure; delivered scope and interfaces depend on the DUT.
Controlled DUT area

BMS and CMUs are mounted on a threaded grid plate inside the side enclosure or an integrated drawer.

Coupled interlock

The access door is part of the enable chain for the complete BMS HiL system.

De-energized access

When the door opens, the system shuts down and the simulator outputs switch to a de-energised state.

Project-specific engineering

Safety functions, connectors, DUT fixture and the required risk assessment are defined for the delivered configuration.

Automation and model-based testing

Open interfaces for the test environment you already use.

Control cell values, faults and measurements through documented interfaces, standalone or within a hardware-in-the-loop test bench.

Two comemso employees working with a Battery Cell Simulator and its control software.
Hands-on system integration: comemso employees working with Battery Cell Simulator hardware and software.

comemso comframe software

Set cell signals and review the BMS response in comframe.

In comframe, configure channels, review measurements and prepare test sequences. Use the same workspace to set repeatable conditions and keep the results.

Keep the applied stimulus, BMS response and acceptance criteria together. Choose the cell channels, fault functions and automation interfaces as part of your system and software configuration.

Explore comframe software →

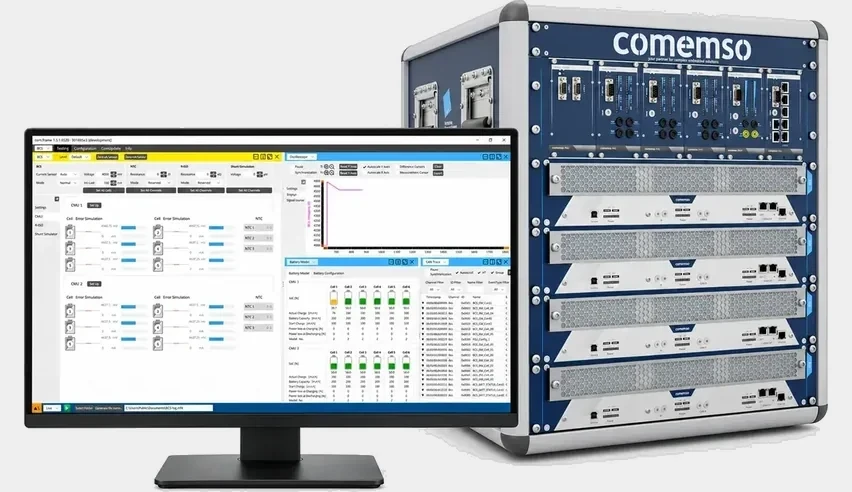

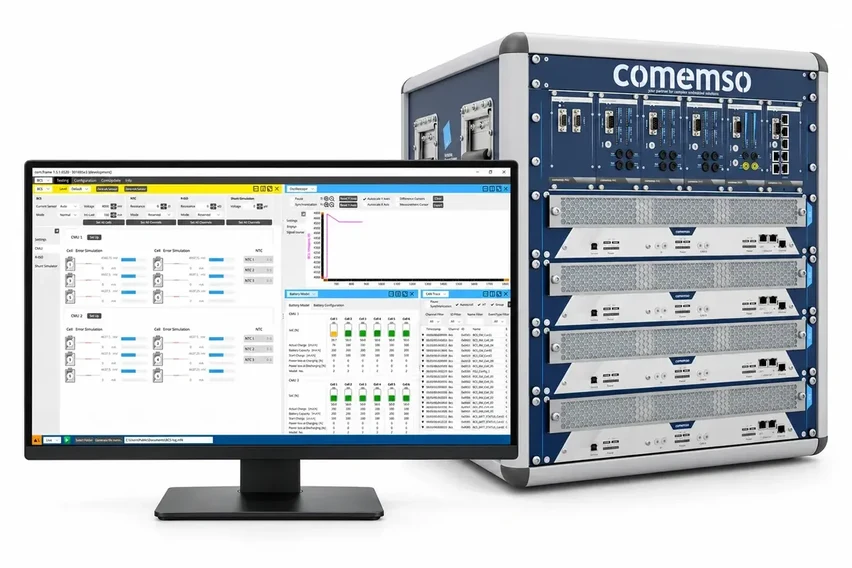

Battery Cell Simulator rack operated through the comemso comframe BMS testing workspace
Representative Battery Cell Simulator and comframe configuration. The interface and available functions depend on the selected software release and system configuration.

Battery Cell Simulator diagnostics during the BMS test: connection and channel faults

The simulator controller detects supported connection and channel faults and identifies the affected module with its red error indicator. Read the fault information through the CAN, Ethernet or EtherCAT interface of your configuration and use it when evaluating the BMS test.

Deliberately injected DUT fault

Select a fault supported by the configured simulator, such as an open circuit. Specify its channel and application conditions, then define the expected BMS response for the test.

Unintended test-system fault

Check the simulator connection and channel diagnostics before accepting a run. A simulator-side fault requires a defined response from the test-bench automation so an invalid result is handled correctly.

Review the diagnostic status alongside the applied cell signals, BMS response and other test conditions. Define acceptance criteria and automatic stop, quarantine and retest behaviour in the test-bench automation.

Specify accuracy at the DUT connection, cable compensation, operating conditions and long-term stability for the selected Battery Cell Simulator setup.

Find your test solution

Cell-level measurement accuracy over time

Calibration and SmartCal for the Battery Cell Simulator

The Battery Cell Simulator supports software fine adjustment and professional recalibration to maintain cell-level measurement accuracy.

  1. 1
    Fine adjustment

    Correct small cell-voltage deviations through the Battery Cell Simulator software workflow.

  2. 2
    Service calibration

    Use the released service process at comemso or through qualified service personnel.

  3. 3
    SmartCal

    Automate calibration and adjustment with a guided process, suitable reference equipment and a generated report.

Review calibration and maintenance

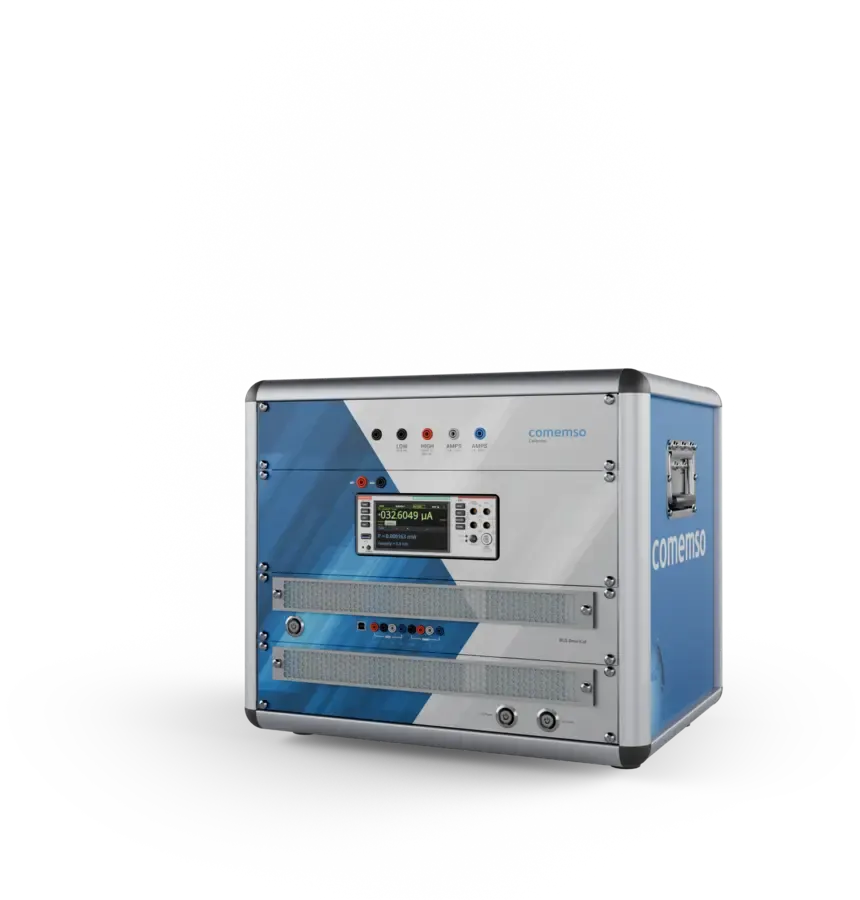

Current Battery Cell Simulator SmartCal calibration system
SmartCal for guided Battery Cell Simulator calibration and adjustment.

From a compact development setup to larger BMS test systems

A BESS customer expanded from a 24-cell development platform to two BMS test systems, each with 132 cell channels, 40 NTC/PTC channels, shunt and RISO simulation.

Read the BESS customer story

Customer system: High-voltage BMS testing — System of the Month.

Test scenario: one cell voltage falls below its limit

Illustrative test: keep the other simulated cells at their normal values and lower one channel through the controller’s defined threshold. Compare the voltage reported by the BMS, its diagnostic message and protective response. Each channel independently controls a cell or sensor signal. Configure the required channels and any additional pack-level equipment for the complete test setup.

Free BMS testing whitepaper

Planning BMS temperature tests?

Use the BMS whitepaper to plan cell and sensor simulation across temperature tests, including climate-chamber wiring, cold starts and heat exposure.

Illustration of an engineer planning BMS thermal validation with cell simulation and a climate chamber
Explore the BMS testing whitepaper

Customer experience

Customer voices on BMS testing

“At TI, we know having the right tools and support makes innovation possible. Our broad portfolio of devices for battery management systems coupled with comemso’s proven results and accuracy with their battery cell simulator helps accelerate design time. comemso offers the ability to test and measure your system on a cell level with high precision.”

Mark NgGeneral Manager for HEV/EV Powertrain, Texas Instruments

“Outstanding technical knowledge of comemso and customer application. High product quality and suitable for research.”

Prof. Dr. Remus TeodorescuAalborg University Denmark

“The flexible simulation of real-world battery conditions with the comemso BCS allows us to automatically test different real-life scenarios from our customers of grid, automotive, and transportation area and identify & eliminate safety-critical factors to improve performance at an early stage.”

Keijo LassSoftware Engineering Manager, Skeleton Technologies

Frequently asked questions

BMS tester and Battery Cell Simulator FAQ

What is a battery cell simulator, and how is it used as a BMS tester?

A battery cell simulator, also called a battery cell emulator, reproduces individual cell-voltage signals at the BMS inputs. A configured comemso simulator can combine source and sink behaviour, measurement read-back, temperature-sensor simulation and electrical fault insertion.

Verify the BMS response to defined normal, boundary and fault conditions without waiting for real cells to charge or discharge. Cell simulation supplies defined electrical inputs for repeatable controller tests; battery chemistry is characterised in a separate cell-test setup.

Explore the cell-simulation method

Is a battery cell simulator the same as a battery pack simulator?

The two systems cover different levels of a BMS test. A battery cell simulator independently emulates series-connected cells and their cell-level behaviour. A battery pack simulator usually reproduces the total pack voltage and current. Both can be combined in a complete BMS HiL system.

How many battery cells can the comemso system simulate?

The modular product family can be configured from 12 to 300 simulated cells, with 0.1 to 8 V per cell and total series voltages up to 1,500 V. The final configuration depends on the DUT, current requirements and additional functions.

Can it test active and passive cell balancing?

For passive balancing, the simulated-cell channel sources current into the BMS bleed resistor. Active-balancing tests can require source and sink operation, depending on the energy-transfer path. Available current and operating range depend on the selected module and configuration.

Which electrical faults can be inserted?

Depending on configuration, the scope includes wire breaks or open circuits, a short across a simulated-cell channel and polarity reversal. Complete systems can add temperature-sensor faults, insulation-resistance simulation, current-sensor emulation and project-specific fault paths.

Can a Battery Cell Simulator test bench grow into an existing BMS HiL or automation environment?

A configured Battery Cell Simulator can integrate through documented CAN, Ethernet or EtherCAT interfaces. comframe supports setup and manual testing; the selected interface and software scope determine further automation.

The linked BESS project shows how a development setup grew into two BMS test systems. Its cell and sensor-channel configuration is documented in the customer example.

Read the BESS customer story · Review comframe integration interfaces

Can you recommend some reliable brands for battery simulators and emulators?

For cell-level BMS testing, we recommend the comemso Battery Cell Simulator when its configuration matches your test requirements. comemso is the manufacturer of this system. Match its configured cell count, source and sink ranges, sensor signals, fault functions and interfaces to your test requirements.

Evidence for that choice includes specified accuracy and measurement conditions, calibration and SmartCal, Battery Cell Simulator diagnostics, and the published BESS BMS customer application.

A battery cell emulator supplies individual cell signals to a real BMS. Pack-level battery simulators and emulators reproduce total pack voltage and current. Select the type of simulation first; a complete BMS HiL setup can combine both.

Review the reliability criteria for automated BMS tests. See the method for BMS sleep and undervoltage testing.

What makes a battery cell simulator reliable for automated BMS tests?

Compare specified accuracy at the DUT connection, suitable source and sink ranges, cabling and compensation, load conditions, calibration, long-term stability and measurement read-back.

The comemso Battery Cell Simulator reports supported connection and channel faults at the affected module and through the configured software interface. Use these diagnostics alongside the test conditions and BMS response. Define how automation handles invalid runs and when a test must be repeated.

Review test validity and Battery Cell Simulator self-diagnostics

Assess this system against your requirements using specified precision and measurement conditions, calibration and SmartCal, and a published BESS BMS customer application. For an independent supplier comparison, also obtain comparable evidence for the other systems.

BMS-controller test planning

Configure your Battery Cell Simulator.

Define cell count and ranges, sensor channels, balancing and fault options. Match the Battery Cell Simulator enclosure, comframe and HiL interfaces to your BMS test bench.

Technical updates from comemso

Choose your newsletter topics

Receive product and software updates, testing insights and information about comemso events.

Choose my newsletter topics

Choose your topics, then confirm your subscription by email. You can unsubscribe at any time.
