EV and EVSE test systems
EVCA: EV charging tester for EV and EVSE testing
Use the comemso EVCA platform as an EV charging tester or EVSE tester for charging development. Test a charging station with simulated vehicle behaviour, test an electric vehicle with a simulated station, or analyse a real charging pair. Choose interfaces, power equipment and software for the test task.
Commissioning or servicing installed charging stations?
For commissioning and service, Easy Chester guides you through the configured installation and field checks and documents the results. Micro covers AC tasks; Ultimate adds DC charging tests.
EV, EVSE (electric vehicle supply equipment, or charging station), EVCC (vehicle-side charging communication controller), SECC (station-side charging communication controller), real pair and MCS paths.
Communication, interface, power, faults, chamber and field.
Charging-focused configuration, analysis, automation and evidence.
Extend the test depth while reusing the platform’s test methods and workflows.
Shared software and test methods
Reuse your test methods across EVCA systems
An EV charging tester from the EVCA family uses charging-specific software and reusable workflows. Keep measurements together with the conditions under which they were recorded.
Charging-protocol analysis
Connect protocol states, timing, low-level signals and measured values with normative expectations.
Configure the physical test setup
Use the configured EV charging tester to simulate the counterpart required by your DUT, or measure a real charging pair. Select the interface, power level and supported faults. Define the chamber connection or real-pair setup where the task requires it.
Reuse configurations and test cases
Reuse approved configurations, test logic, captured charging behaviour and evidence where the released system supports it.

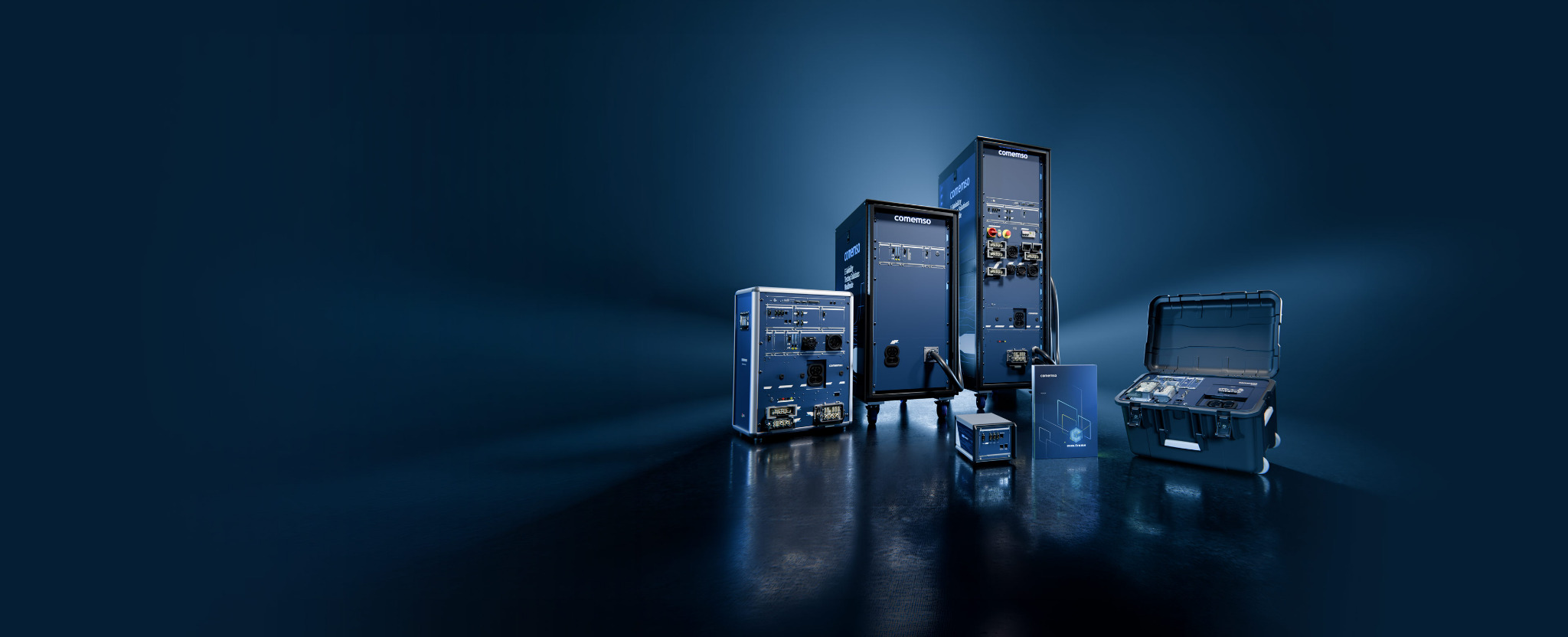

Six system paths
Choose your EV tester or EV charger tester configuration
In the January 2025 customer project, EVCA Multi Mobile connects on-site testing with a Gustav Klein power source in the laboratory.
Choose an electric vehicle tester or EV charger test equipment around your DUT (device under test) and test role. The six system paths cover controller communication, real-pair analysis, portable testing, laboratory power, MCS and EMC.
EVCA ComOnly
Develop EVCC or SECC communication with protocol analysis, nominal and advanced simulation and the applicable Conformance Test Libraries at the controller bench.
- Primary DUT
- EVCC or SECC
- Environment
- Bench and laboratory
- Use when
- Protocol behaviour is the test boundary
EVCA Interop
Record the real charging pair on one timeline, locate the deviation and test the proposed correction under defined conditions.
- Primary DUT
- The real charging pair
- Environment
- Field and laboratory
- Use when
- You need to investigate how a real vehicle and station interact
EVCA Multi Mobile
Use portable multi-standard hardware for EV simulation, EVSE simulation and real-pair analysis in the vehicle, laboratory or field.
- Primary DUT
- EV, EVSE or real pair
- Environment
- Mobile laboratory and field
- Use when
- One portable system must cover several roles
EVCA Flex
Build a modular EV or EVSE test environment around external source and load hardware, synchronised measurement, electrical faults, high-power operation and standards-specific test hardware.
- Primary DUT
- Complete EV or EVSE charging system
- Environment
- Laboratory and validation centre
- Use when
- Power, faults and deeper physical verification matter
EVCA MCS
Address MCS EV, EVSE and communication testing with charging-specific protocol, low-level signals, temperature and cooling interfaces and scalable power integration.
- Primary DUT
- MCS EV, EVSE or controller
- Environment
- MCS laboratory and system test
- Use when
- The complete megawatt charging stack must be controlled

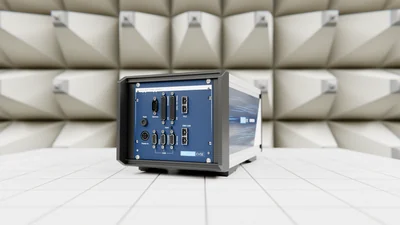

EMC Link
Preserve charging communication through the EMC chamber with a transparent optical link while the approved measurement and test systems remain outside the chamber.
- Primary DUT
- EV, EVSE or charging interface under EMC stress
- Environment
- EMC chamber
- Use when
- The chamber boundary must not distort communication
Selection matrix
Compare EVCA systems by test task
Confirm ratings, interfaces and released scope on the detailed product page.
On smaller screens, scroll the table horizontally to see every column.
| System path | Primary test boundary | Typical environment | What this path adds |
|---|---|---|---|
| EVCA ComOnly | EVCC or SECC communication | Bench and laboratory | Charging-protocol development, simulation, analysis and applicable conformance tests at the EVCC or SECC bench. |
| EVCA Interop | Real EV-to-EVSE interaction | Field and laboratory | Record the real charging pair, locate deviations and check a proposed correction under defined conditions. |
| EVCA Multi Mobile | Portable EV, EVSE and real-pair interface | Vehicle, mobile laboratory and field | Portable access to several test roles and charging standards for work in the vehicle, laboratory and field. |
| EVCA Flex | Controlled EV or EVSE laboratory counterpart | Laboratory and validation centre | External power integration, synchronised electrical depth, controlled faults, high-power and standards-specific hardware. |
| EVCA MCS | MCS communication, low-level signals, cooling and power | MCS system laboratory | Dedicated EV, EVSE and controller paths for the megawatt charging stack. |
| EMC Link | Optical charging communication across the chamber wall | EMC chamber | A transparent chamber boundary for charging communication. Stimulus, measurement and verdict remain with the configured laboratory systems. |
Expand your EVCA system
Keep the core. Expand your test system.
The EVCA core is the central component of the system. In a compatible expansion, move your existing core into a larger EVCA body. The workflow and test logic remain connected in comframe.
Your EVCA coreThe brain you keep
The same EVCA coreChoose the hardware for the next test task
Add the power, switching and fault-test hardware needed for the next stage.
comframe
Shared software + test logic
Begin with communication
EVCA ComOnly provides the starting point for controller communication tests.
Begin with the real pair
EVCA Interop provides the starting point for real-pair investigations.
Add portable EV and EVSE testing
EVCA Multi Mobile extends testing to portable EV, EVSE and interoperability work.
Add power, faults and standards hardware
EVCA Flex adds external power, switching and physical fault-test hardware.
Customer system: EVCA Flex for certification laboratories — System of the Month.
EVCA capabilities
What an EV charging tester checks
An EV charging tester can analyse charging behaviour, introduce supported faults and repeat recorded scenarios. Choose analysis, manipulation, reproduction and automation functions for the selected EVCA product and software release.
Relate measured charging behaviour to normative expectations automatically.
Configure nominal, boundary and non-conform charging behaviour in depth.
ValidateTest a live correction hypothesis between real charging partners.
ReproducePhysically reproduce recorded protocol-level charging behaviour at the interface.
AutomateTurn saved configurations into repeatable charging campaigns.
VerifyExecute released, versioned standards-based test logic with attributable verdicts.
Customer experience
Customer voices on the EVCA platform
“We ensure high-quality test results with the right test equipment”
“Currently the best and most complete vehicle simulator / sniffer / man in the middle we have used.”
“Thanks to the use of your equipment, we have achieved excellent results in our validation and certification process. Their quality and performance have exceeded our expectations.”
Platform FAQ
EVCA selection and configuration FAQ
Is EVCA one physical device?
EVCA is a family of test systems for different charging tasks. Applicable systems share charging-specific software, capabilities and test methods; the hardware is selected for the charging interface and physical test scope.
Which EVCA system should be selected first?
Start with the DUT and physical boundary. Select ComOnly for controller communication, Interop for a real EV-to-EVSE pair, Multi Mobile for portable multi-role work, Flex for laboratory power and faults, MCS for megawatt charging or EMC Link for the chamber boundary.
Can an EVCA configuration grow later?
Yes, where the hardware generation, interfaces, licences, Test Libraries and project architecture allow it. The reviewed upgrade or migration path is authoritative for the concrete system.
Does every EVCA contain every capability?
No. Capability availability depends on the selected product, charging standard, role, software modules, licences, Test Libraries, interfaces and released configuration.
EVCA system planning
Select your EVCA platform.
Specify the DUT, interfaces and software for your EVCA configuration.
